Thermal camera for Spot
IP65 Rated
Module weight: ~7.5 kg (front mount) / ~8.0 kg (rear mount)
IR Image Resolution: 640×512 px
Operating Temperature: −20 °C to +45 °C
Thermal, Panoramic, PTZ Camera

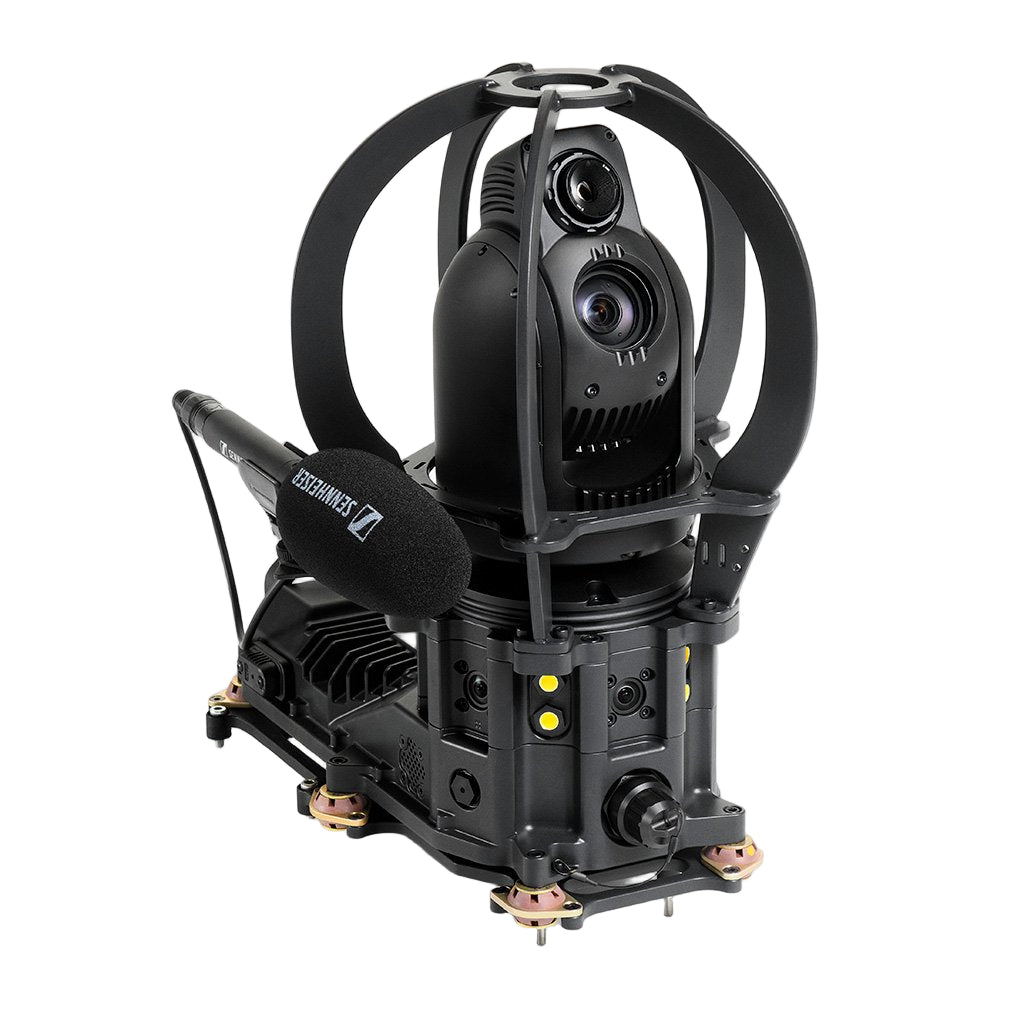

Equip your Spot robot with the CAM+ IR payload to capture not just visual data but full-spectrum insights. With a 30× optical zoom PTZ camera, full-360° panoramic video, and integrated radiometric thermal imaging (-40 °C to +550 °C range), this module transforms Spot into a high-fidelity inspection tool for industrial, infrastructure, hazardous-environment and remote-operations missions. Ruggedized with IP65 ingress protection and designed for front or rear mounting, the CAM+ IR delivers actionable data where and when you need it.

DIMENSIONS
Length: 334 mm (13.1 in)
Width: 227 mm (8.9 in)
Height (Front Mount): 357 mm (14.1 in)
Height (Rear Mount): 427 mm (16.8 in)
Weight (Front Mount): 7.5 kg (16.4 lbs)
Weight (Rear Mount): 8.0 kg (19.8 lbs)

360° CAMERA
Field of View (FoV): 360° × 170°
Video Frame Rate: Variable*
Video Storage: No
Video Streaming: Yes
Resolution: 10 MP
File Size: 31.1 MB
Still Image Format: PPM (Portable Pixel Map)

PTZ CAMERA
Resolution: 2 MP (1080p video)
Optical Zoom: 30×
Pointing Accuracy: 2°
Range of Motion: 170°/sec
Tilt Range: -30° to +270°

IR CAMERA
Scene Temperature Range:

  • High Gain: -40°C to +160°C
  • Low Gain: -40°C to +550°C
    Video Speed: 7.5 Hz
    Field of View (FoV): 69° × 56°
    Image Resolution: 640 × 512
    Accuracy: Radiometric ±5°C

AUDIO
Input: Sennheiser MKE-600 Shotgun Microphone
Storage: Removable 256 GB USB 3.1

ENVIRONMENT
Ingress Protection: IP65
Operating Temperature: -20°C to 55°C

Remote Robotic is a North American authorized dealer for Boston Dynamics Spot Cam+IR.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Spot Camera user manual

We offer training for all robotic solutions

Learn more

Spot Cam+IR FAQ

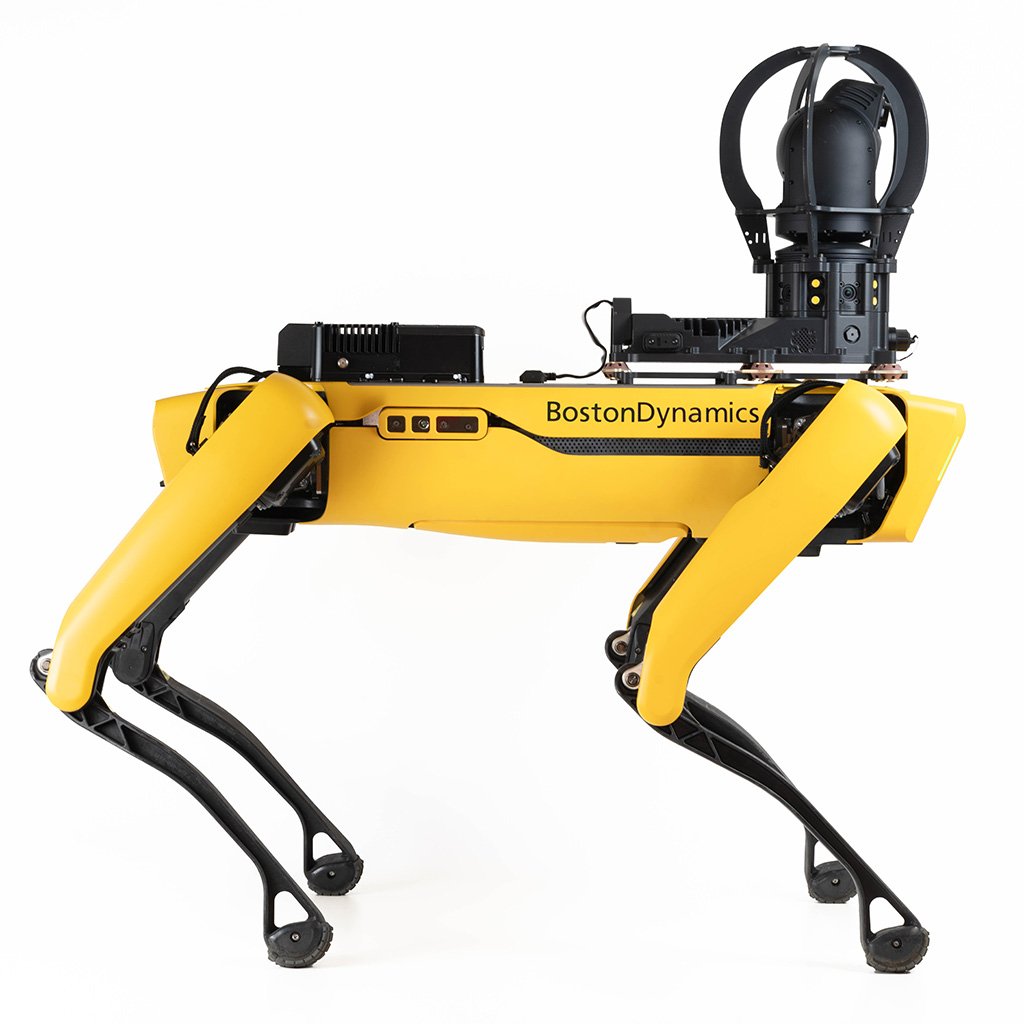

The CAM+ IR module is designed for integration with the Spot robot platform, enabling advanced inspection workflows.

Yes — it includes radiometric thermal imaging capable of detecting up to +550 °C (with low gain) and is ruggedized for inspection.

Yes — the module adds approximately 7.5 kg to 8.0 kg to the robot; check Spot’s payload capacity (up to 14 kg) and balance your mission specs accordingly.
