LP12 Searchlight & Broadcasting System

Regular price: $2,979.00 CAD
Sale price: $2,979.00 CAD
Regular price

120dB max sound

200m broadcasting range

Payload weight: 270g

100m illumination range

Operating temperature: -20°C~+50°C

Spotlight & Speaker for Matrice 30

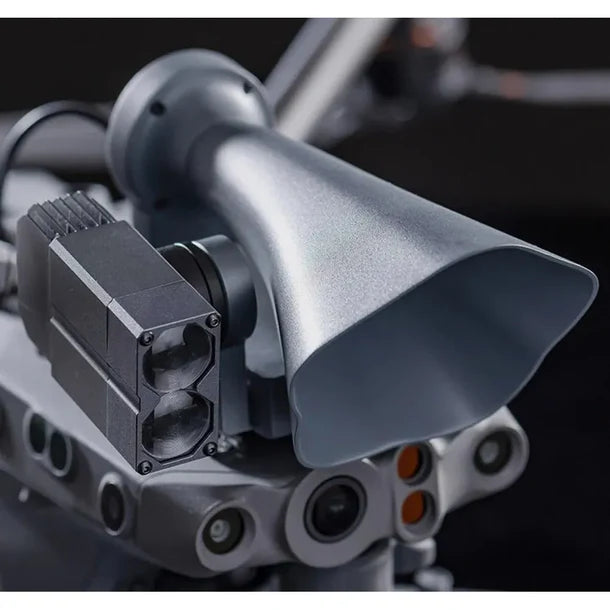

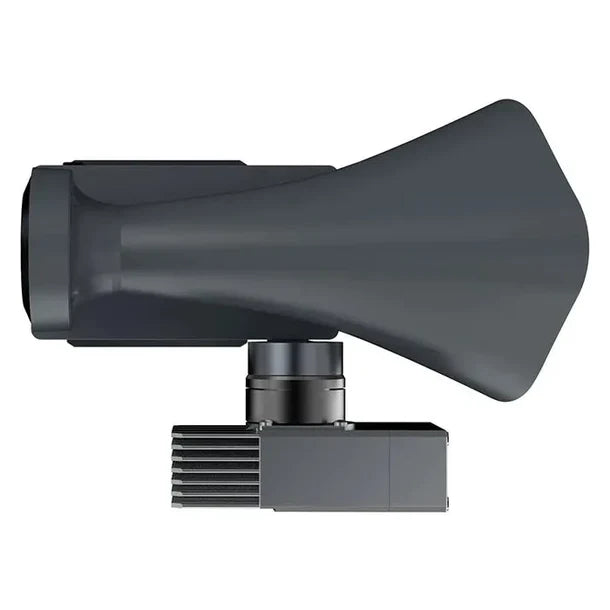

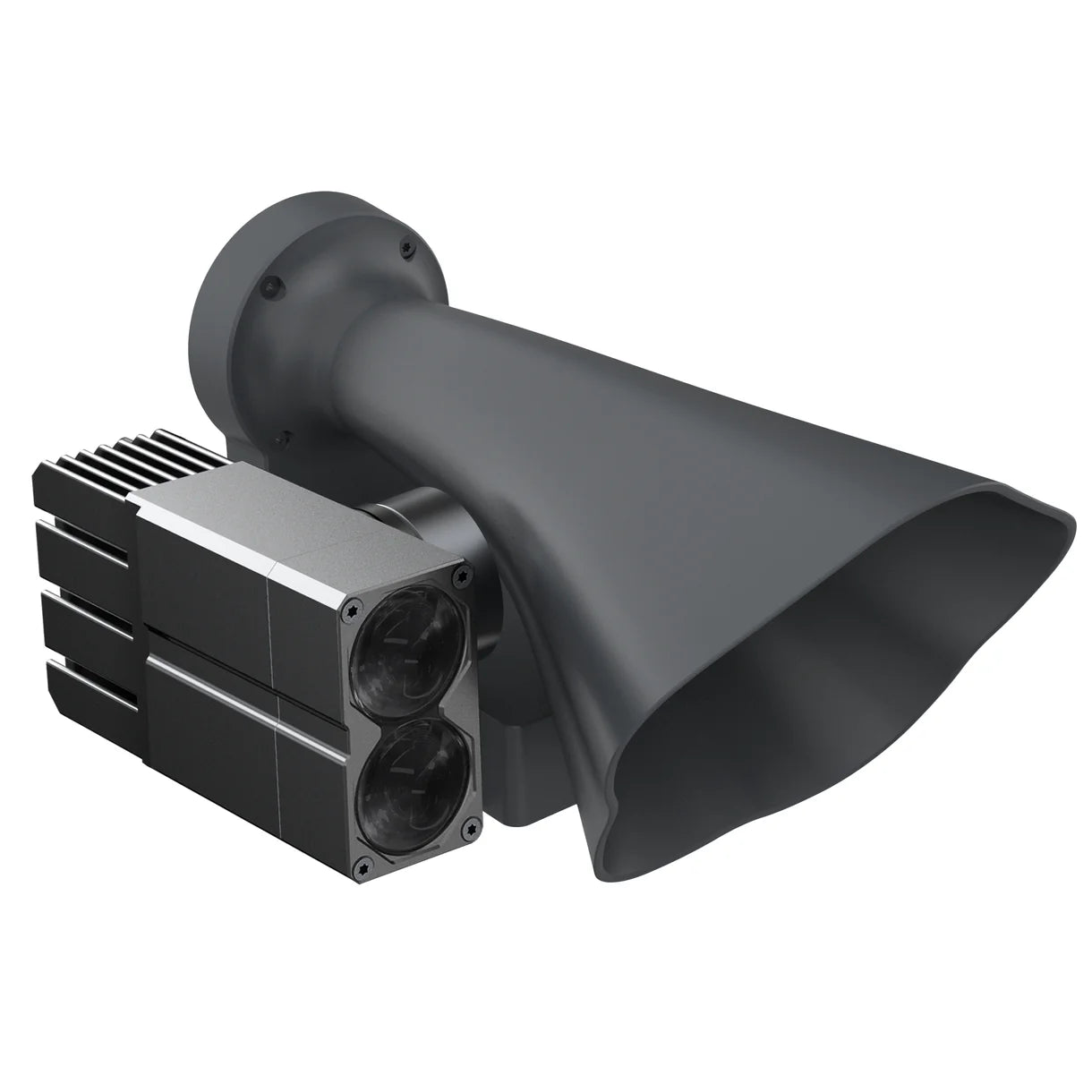

The LP12 is a searchlight and broadcasting payload designed for the DJI M30 enterprise drone model. It integrates a high-output LED spotlight with long-distance audio broadcasting (LRAD-style) in a lightweight package (~270 g), optimized for patrol, search-and-rescue, and public-safety drone operations.

Technical Parameters — CZI LP12

Model

LP12

Electrical Interface

DJI OSDK

Weight

270 g without the quick-mount fixture
283 g with the quick-mount fixture

Dimensions

162 mm (L) × 115 mm (W) × 75 mm (H)

Lighting System

Searchlight Power

Regular mode: 30 W
Ultra-bright mode & Flashing mode: 40 W

Luminous Flux

2700 lm ± 3%

Searchlight FOV

13°

Illumination Distance

150 m, 130 m, 100 m, and 50 m ranges

Spot Diameter

34 m at 150 m
29.6 m at 130 m
22.8 m at 100 m
11.4 m at 50 m

Illuminated Area

917 m² at 150 m
688 m² at 130 m
407 m² at 100 m
102 m² at 50 m

Central Illuminance

1.7 lux at 150 m
2.5 lux at 130 m
6.3 lux at 100 m
25 lux at 50 m
(measured at 95% air humidity)

Audio System

Speaker Power

15 W

Maximum Sound Pressure

122 dB

Effective Broadcasting Range

200 m at 76 dB
350 m at 69 dB

Broadcasting Modes

Live broadcasting
Upload and play audio files
Text-to-speech (supports multiple languages)
Background sound playback

Supported Audio Formats

mp3, wav, m4a, flac, aac

Gimbal

Movement Range

Pitch: −120° to +45°

Power & Environment

Power Supply Voltage

24 V

App Support

DJI Pilot
DJI Pilot 2

Operating Temperature

−20°C to +50°C

1. Searchlight

2. Speaker

3. Power/communication cable

4. Micro USB port5. M3 screws

6. Quick mount/dismount bracket

Remote Robotic is a North American authorized dealer for CZI LP12 Searchlight & Broadcasting System.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

CZI LP12 user manual

We offer training for all robotic solutions

Learn more

LP12 Searchlight & Broadcasting System FAQ

The LP12 combines dual functions: a high-power spotlight and a long-range aerial public-address/speaker system (LRAD-style broadcasting), enabling one payload to serve two roles in search/rescue, night operations, or security patrols

Yes — with a total weight of ~270 g and a streamlined design tailored for the M30’s PSDK interface, the LP12 is built to minimise wind resistance and maintain flight performance.

Yes — the LP12 integrates deeply with the DJI Pilot app via the PSDK interface, enabling remote control of lighting, strobe modes, text-to-speech broadcasting, and mass-audio playback from the drone.
