SPH Engineering

Cobra Drone CBD GPR

GPR
Radar

Regular price: Contact us for best pricing
Sale price: Contact us for best pricing

Battery Runtime: ~10 hrs

Weight: 5.2 kg

Bandwidth: 50-1400 MHz

Centre Frequency: 500 MHz

Depth Penetration (typical): 2-4 m (up to ~10 m)

Mount Platform: UAV + Terrestrial

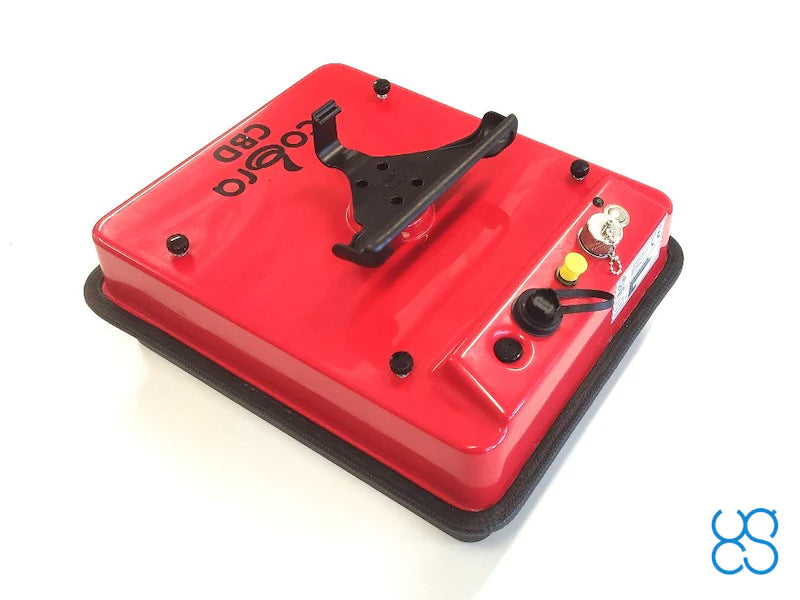

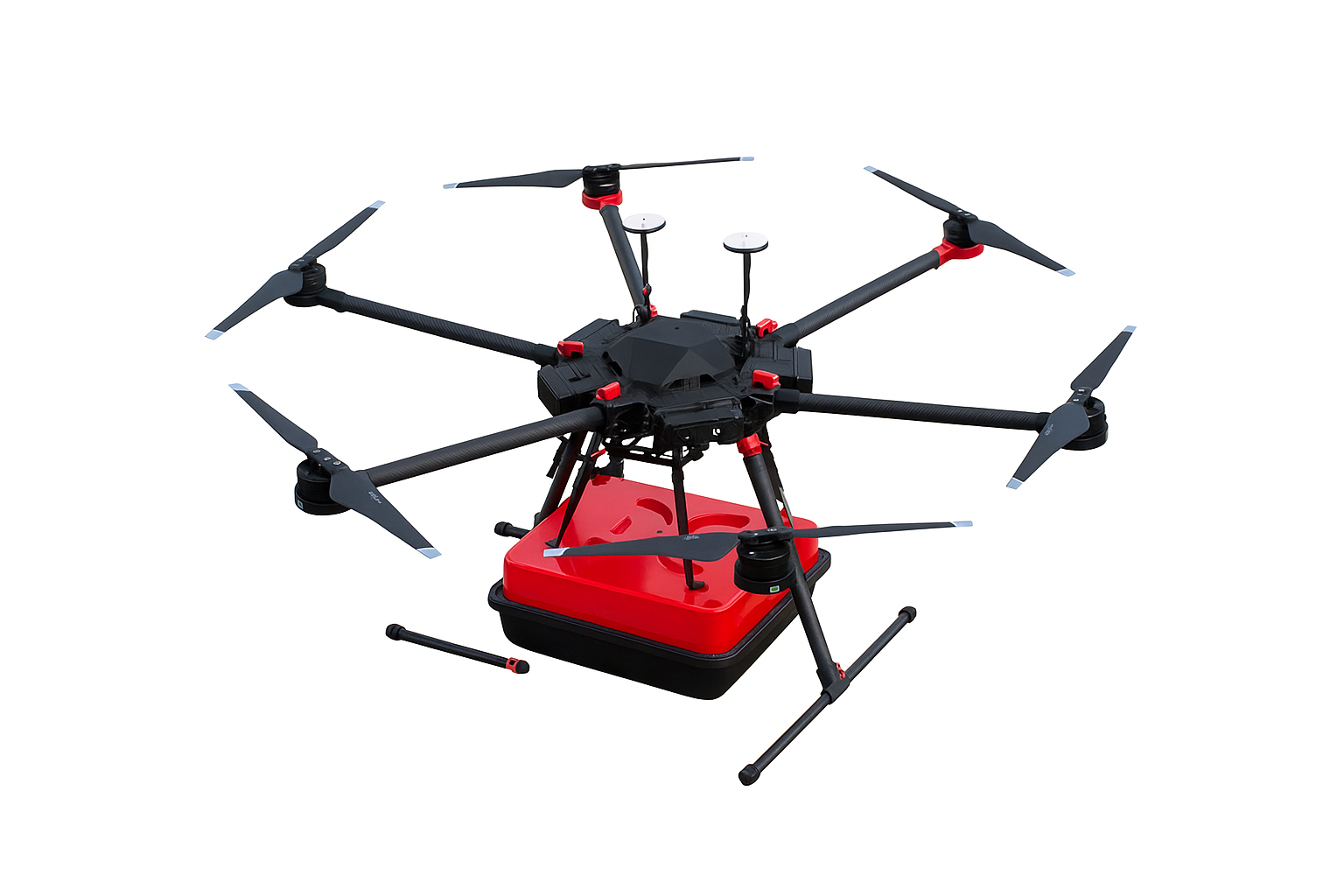

The Cobra Drone CBD GPR is the airborne variant of Radarteam’s CBD multi-frequency ground-penetrating radar system. It features a patent-pending wide-band “CBD” antenna design (50–1400 MHz) to deliver superior resolution and depth penetration from UAV or terrestrial platforms.

Ideal for utility mapping, subsurface infrastructure surveys, archaeology, glaciology/snow thickness monitoring or any shallow-depth, high-resolution subsurface survey where mobility and data quality matter.

TYPE

Single-channel with unshielded antenna

FREQUENCY PARAMETERS

Central Frequency: 500 MHz
Operating Bandwidth: 50–1400 MHz

SAMPLING PARAMETERS

Sampling Method: Stroboscopic sampling
Samples per Scan (Selectable): 128 / 256 / 512 / 1024 samples per scan
Sample Rate: 40,000 samples/second
Scan Rate: 1–40 scans/s per channel (at 512 samples/scan)
Sample Output: 16-bit digital raw data
Time Range per Sample (Selectable): 0–2000 ns (typical: 0–500 ns)

DEPTH CAPABILITY

Up to 10 meters (depending on ground properties)
Typical penetration: 2–4 meters

DATA FORMAT

Standard Geophysical SEGY Data Format (.sgy) with trace geotagging

ENVIRONMENTAL PARAMETERS

Operating Temperature: –20°C to 40°C (internal temperature)
Humidity: 96% non-condensing
Ingress Protection: IP68

MECHANICAL PARAMETERS

Size (L × W × H): 50 × 35 × 20 cm
Weight: 5.2 kg

BATTERY AND POWER

Airborne Variant: Integrated 94 Wh Li-Ion battery (up to 10 hours of operation)
Ground Surveys: Integrated 94 Wh Li-Ion battery (up to 10 hours of operation

Cobra Drone CBD GPR system
Rugged tablet computer
Cradle for rugged computer on GPR/antenna
Brackets for drone
Rugged transport case
Charger
Prism2 data acquisition/post-processing software

Remote Robotic is a North American authorized dealer for SPH Engineering Cobra Drone CBD GPR.
