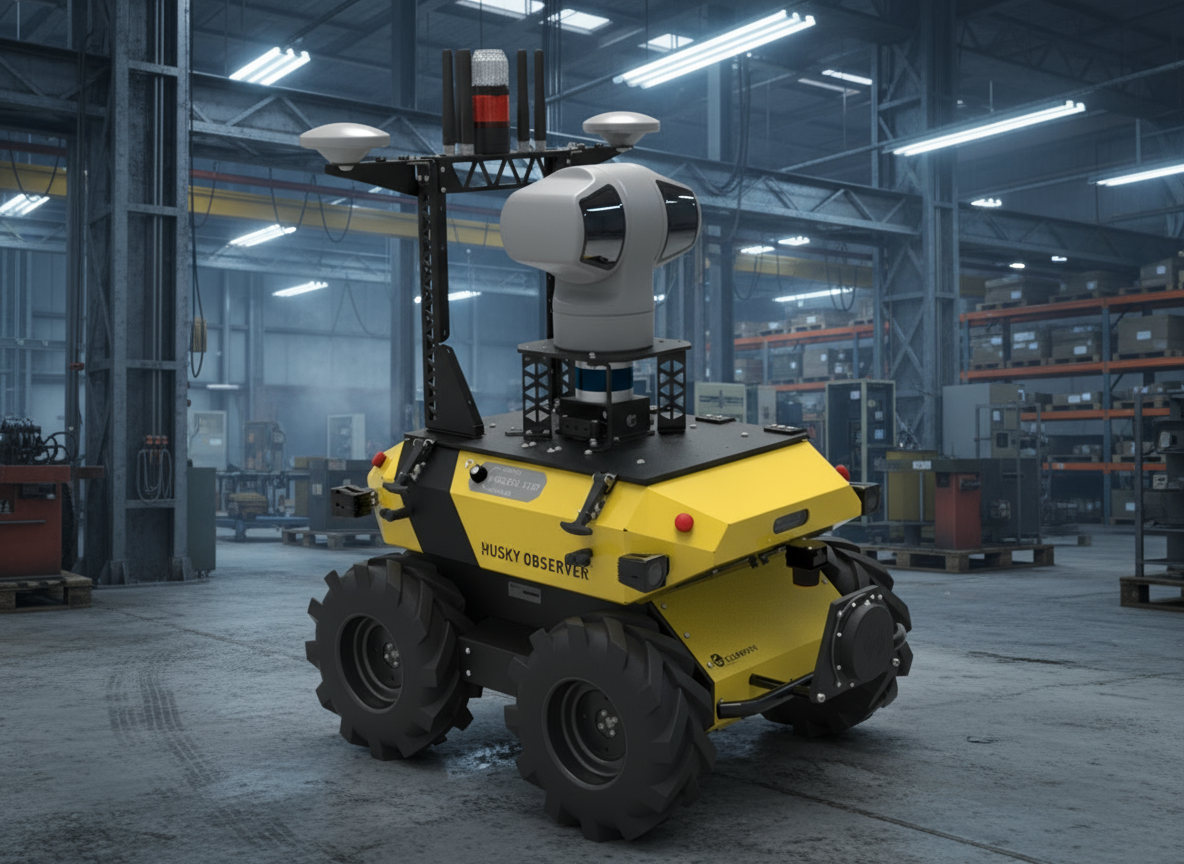

Husky Observer - UGV

Clearpath

Regular price: Contact us for best pricing
Sale price: Contact us for best pricing

Up to 18 hours of operation

IP55 Rated

10 kg max payload

WiFi + LTE

Operating temperature: -10 to +40° C

Modular Payload System

The Husky Observer is a fully integrated inspection and observation system built on the proven Husky UGV base. It combines rugged outdoor mobility, a full suite of navigation and inspection sensors, and pre-installed autonomy software so your team can deploy inspection solutions rapidly — without the long integration cycle. Ideal for industrial inspection, remote infrastructure monitoring, security patrols, agriculture observation, or construction site documentation.

HUSKY OBSERVER — TECHNICAL SPECIFICATIONS

INSPECTION SENSORS

PTZ Camera:
1920 × 1080 video / image resolution, 31× optical zoom, IR illumination up to 400 m

Microphone:
20 Hz to 10 kHz range, –22 dB sensitivity, 126 dB max SPL, 82 dBA SNR

Optional Thermal Camera:
640 × 480 resolution, up to 42° FOV, video + radiometric streaming, motorized focus control

PLATFORM

External Dimensions (L × W × H): 1061 × 854 × 1224 mm (41.8 × 33.6 × 48.2 in)
Weight: 98.5 kg (217 lbs)
Maximum Speed: 1.0 m/s (2.3 mph)
Ground Clearance: 130 mm (5 in)
Operating Time: 2.5 – 4.0 hours
Ingress Protection: Designed for IP55
Operating Temperature: –10 °C to +40 °C
Networking: Wi-Fi + Cell (LTE)
Wireless Charging: Up to 300 W

NAVIGATION SENSORS

Front / Rear Depth Cameras:
1280 × 720 active stereo depth (90 FPS max) / 1920 × 1080 RGB (30 FPS max)

Front 2D LiDAR / Optional Rear 2D LiDAR:
0.02 – 10 m range, 40 Hz, 270° FOV, 0.25° resolution

3D LiDAR:
16 channels, measurement range up to 100 m, accuracy ± 3 cm (typical)

Attitude and Heading Reference System (AHRS):
± 8 g acceleration range, ± 300 °/s gyro range, ± 0.5° static roll/pitch/heading, ± 2.0° dynamic roll/pitch/heading, 0.2° repeatability, < 0.1° resolution, 1000 Hz output rate

RTK GPS:
Localization accuracy within 5 cm or less

PAYLOAD AND CUSTOMIZATION

Supports payloads up to 10 kg (22 lbs)
Compatible with ROS API for custom software control and UI development

APPLICATION AREAS

Payloads sold separately.

Remote Robotic is a North American authorized dealer for ClearPath Robotics Husky Observer - UGV.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Husky Observer user manual

We offer training for all robotic solutions

Learn more
