Ascent AeroSystems

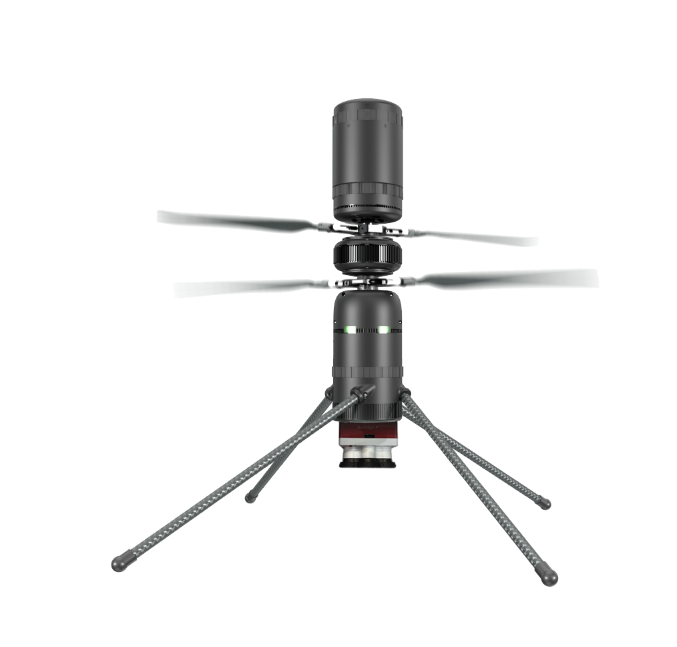

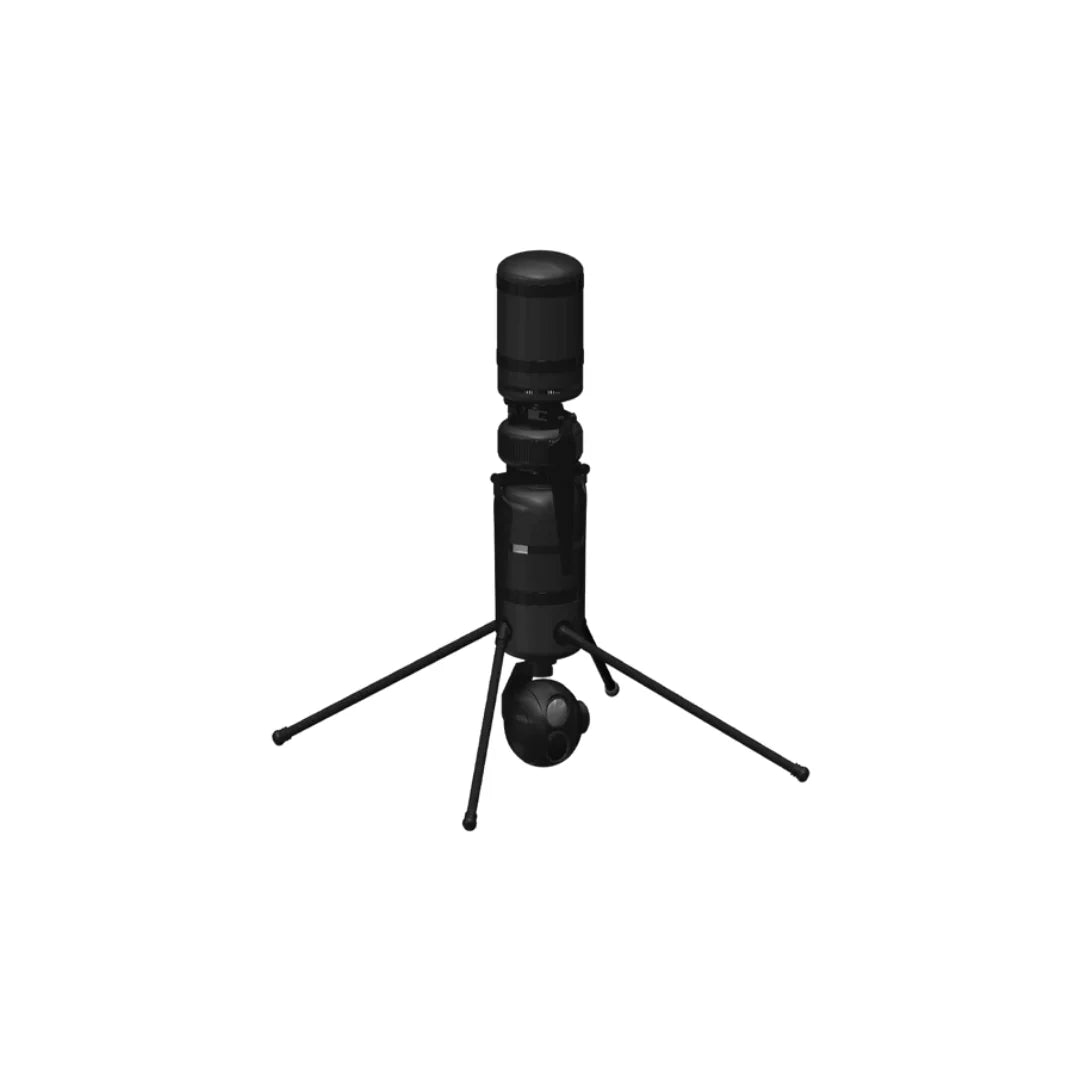

Spirit Coaxial VTOL

BlueUAS
Coaxial VTOL
NDAA

Regular price: Contact us for best pricing
Sale price: Contact us for best pricing

Up to 53 minutes of flight

IP56 Rated

Payload Capacity: 6.5 lb (3.0 kg)

Operating Temperature: –40 °C to +54 °C

Quick-connect payload system

The Spirit delivers aircraft-grade performance in a compact, all-weather vertical-take-off and landing (VTOL) platform designed for mission-critical operations. With a modular coaxial airframe, dual quick-connect payload bays, and over 30 minutes of endurance at max payload, it enables rapid deployment in rain, sleet, snow or sand—ideal for public-safety, infrastructure, defense, and remote-operations missions.

Specification Sheet

Dimensions (airframe): 12 in × 4.2 in core diameter; 25.5 in rotor span
Max Take-Off Weight: 13.5 lb (6.1 kg)
Max Payload Capacity: 6.5 lb (3.0 kg)
Empty Weight: 4.1 lb (1.8 kg)
Endurance (single battery): 38 min no payload / 16 min with max payload
Endurance (dual battery): 53 min no payload / 32 min with max payload
Max Altitude: 14,600 ft MSL (≈ 5,000 m)
Max Speed: > 60 mph (100 km/h); recommended cruise ≈ 40 mph (65 km/h)
Environmental Protection: IP56 rated
Operating Temperature: –40 °C to +54 °C ( –40 °F to 130 °F )
Autopilot: NDAA/Blue sUAS 2.0 compliant; MAVLink compatible; RTK/GNSS supported

Remote Robotic is a North American authorized dealer for Ascent AeroSystems Spirit Coaxial VTOL.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Spirit Spec sheet
