FreeFly Systems

Alta X + Pilot Pro (NDAA/Blue) Essentials Kit

  • NDAA
$59,528.00 CAD
$59,528.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Up to 50 minutes of flight
IP43 Rated
30lb Payload capacity
Operating Temperature: -20C to +50C
Made in USA

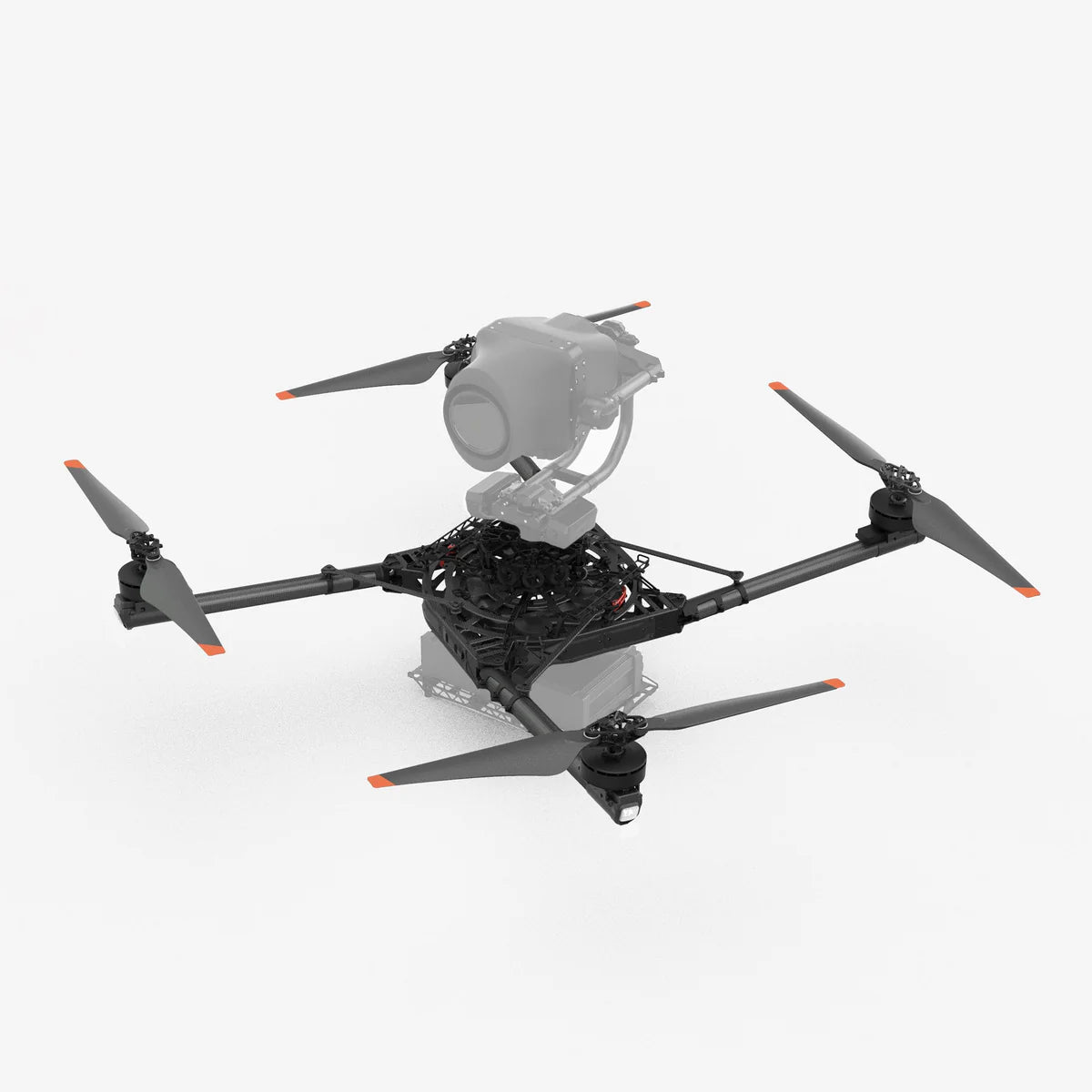

Alta X is Freefly’s flagship heavy-lift multirotor, designed to carry large cinema cameras or industrial payloads like LiDAR, mapping sensors, and specialized survey equipment. With a maximum payload of roughly 33–35 lb and up to 50 minutes of endurance with no payload, it’s built for long missions and demanding jobs.

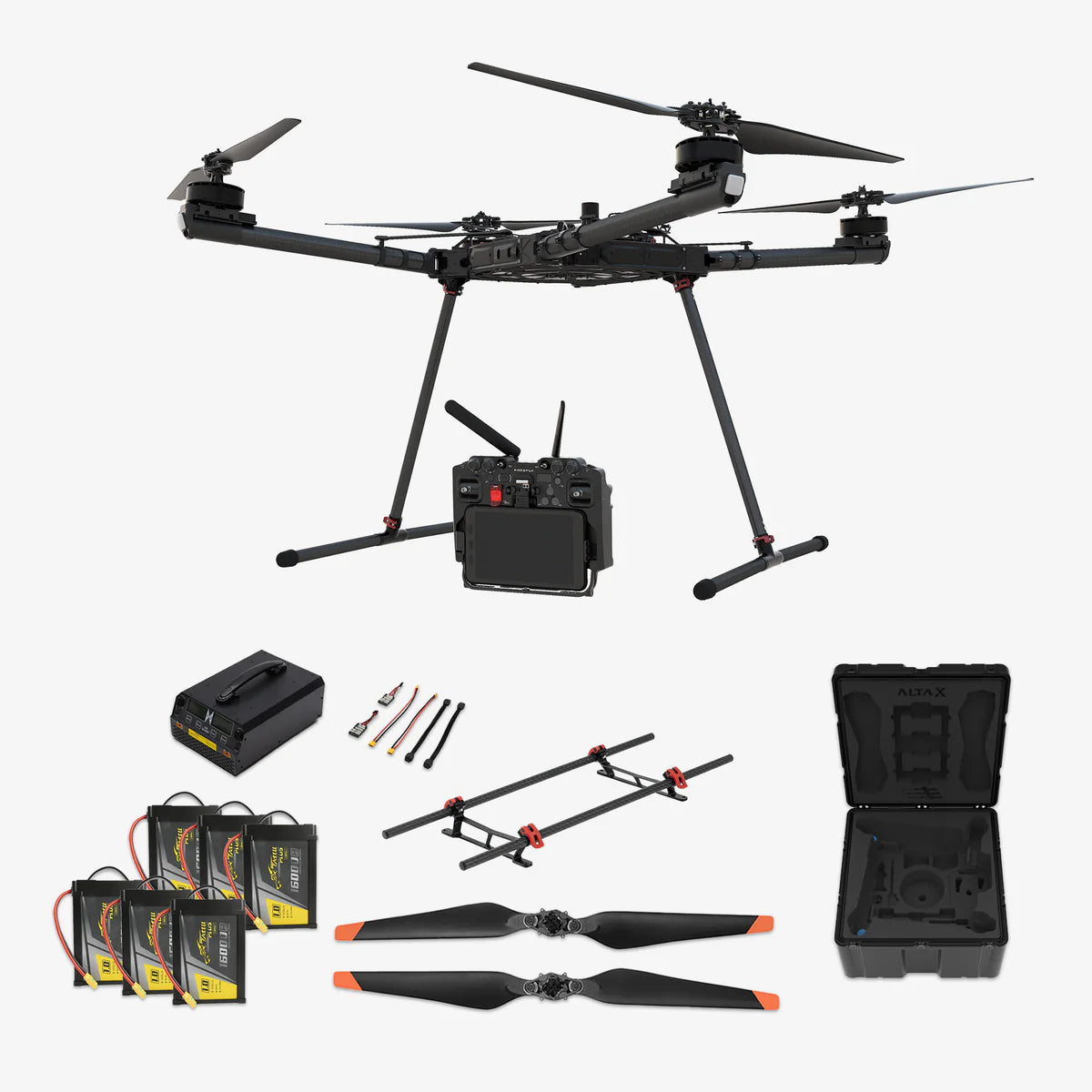

This Essentials Kit combines the NDAA/DIU Blue–compliant Alta X configuration with the Pilot Pro ground controller and all the core power and mounting accessories you need to start flying billable missions:

  • Alta X (NDAA build) with Remote ID configured for BVLOS-compliant operations

  • Pilot Pro controller with Alta-specific QGC flight software and RFD900 radio

  • Six 12S 16Ah batteries (three pairs) and an enterprise dual-channel charger

  • Skid landing gear + 12 mm rail payload mount for LiDAR, cameras, and other 3rd-party payloads

  • Replacement ActiveBlade props (CW/CCW)

All packed in dedicated travel cases for the aircraft and controller, so the system is ready to deploy on site

Alta X Specs

Brochure

Download here

NDAA Compliance

Download here

Dimensions

Unfolded Diameter (not including props): 1415 mm

Unfolded Diameter (Including Props): 2273 mm

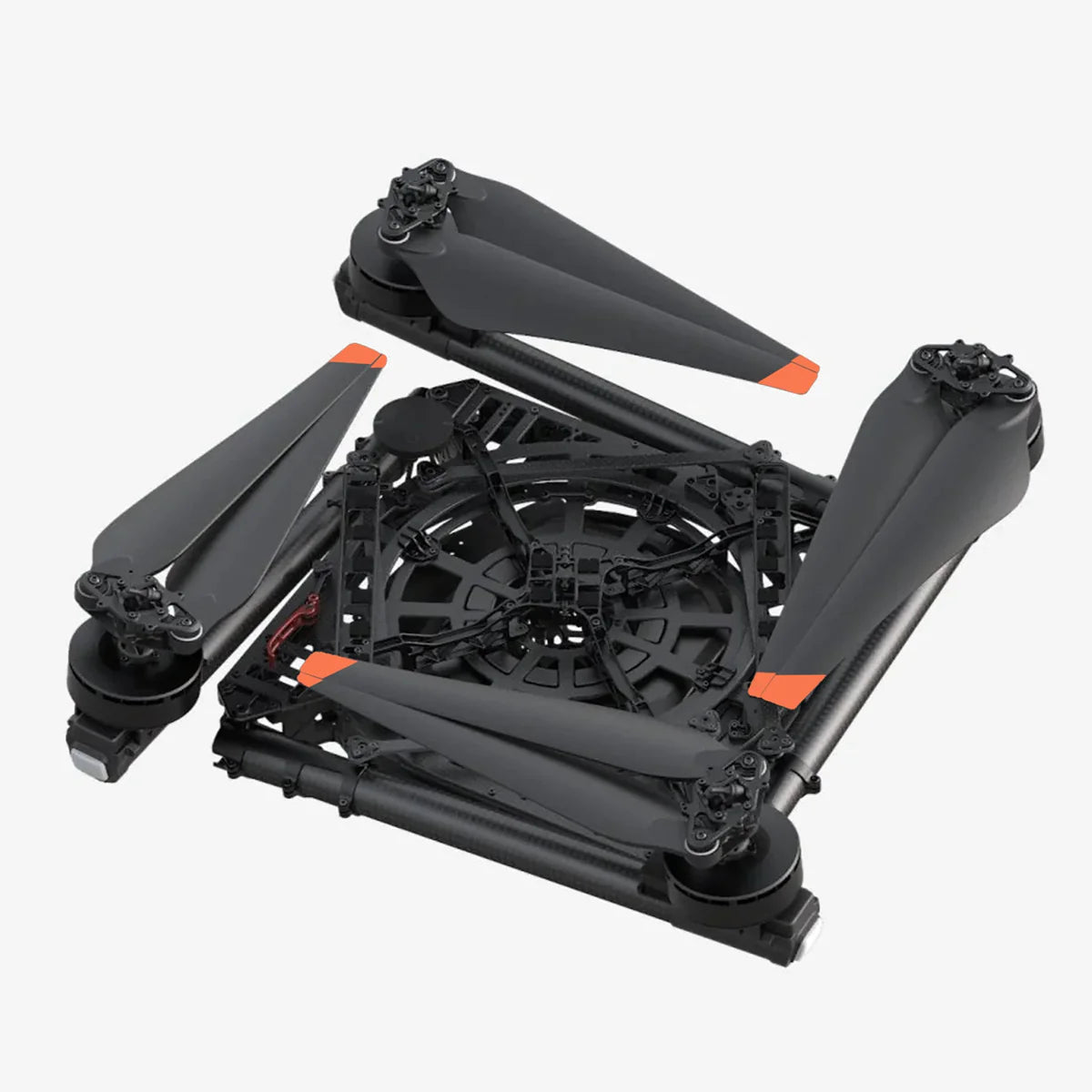

Folded Diameter: 877 mm

Height: 387 mm

Height (Skyview): 434 mm

Powerplant

Number of Motors: 4

Motor Max Continuous Power Output: 100 A

Motor Max Instantaneous Peak Power Output: 130 A (>3s)

Equivalent Kv: 115 rpm/V

Propellers

Model: 33x9in

Material: Carbon fiber filled Nylon

Propeller Orientation: (2) CW and (2) CCW Props

Propeller Type: 840 x 230 mm Folding

Battery

Nominal Battery Voltage: 44.4V

Battery Connectors: XT-90

Required Minimum Battery Discharge Rating (Per Pack): 320 Amps per battery (assumes two batteries) 20C for a 16A-hr pack.

Weight

Maximum Gross for Takeoff: 34.86 kg / 76.85 lb (seeperformance charts)

Maximum Payload: 15.06 kg / 33.20 lb

Typical Standard Empty weight: 10.86 kg / 23.94 lb

Flight Controller

Autopilot Name: Custom PX4 flight control stack

Flight Modes: Manual, altitude, position, mission, loiter, orbit, return

Supported Radios: Futaba, Spektrum, PX4 compatible SBUS and PPM receivers

Supported Radio Controller Telemetry Systems: Voltage feed provided for Futaba RX telemetry

Minimum Radio Controller Channels Required: 5 (roll, pitch, yaw, throttle, mode)

Supported GNSS: GPS/Glonass/Beidou/Galileo

Default Data Logging Rate: Varies, 25hz for main flight data

Lighting and Indication

Orientation Lights: Boom tip mounted lights

Orientation Light Color Options: Colors can be set in software - red, orange, yellow, green, cyan, blue, purple, white, off.

FPV Ability: Yes

Environmental

Operating Temperature: -20C to +50C

Ingress Protection: Tested to IP43 equivalent

Remote Robotic is a North American authorized dealer for FreeFly Systems Alta X + Pilot Pro (NDAA/Blue) Essentials Kit.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Freefly alta X User manual

We offer training for all robotic solutions

Learn more

Alta X + Pilot Pro (NDAA/Blue) Essentials Kit FAQ

With no payload, Alta X can reach up to ~50 minutes. With mapping or LiDAR payloads in the 8–12 lb range, you can expect roughly 30–35 minutes, and even with ~20–22 lb payloads, flight times around 20–22 minutes are achievable, depending on conditions and configuration.

Yes. The Alta X platform, Pilot Pro controller, and RFD900 radio link used in this kit are described as NDAA compliant and DIU Blue–listed, which is why this bundle is often specified for government and critical-infrastructure programs that restrict foreign components.

Yes. The included skid landing gear and 12 mm rail payload mount give you a standard interface compatible with many industrial payloads, including LiDAR and mapping cameras designed for 12 mm rails. If you’re integrating a complex or custom payload, coordinate mechanical and power requirements with your integrator or Freefly documentation.
