Inspired Flight IF1200A Heavy-lift

IF1200

Regular price: Contact us for best pricing
Sale price: Contact us for best pricing

Ground station:

Product variants:

43-minute Max Flight Time

Built-in FPV camera

19.1 LBS Max Payload

Blue UAS & NDAA Compliant

Operating temperatures: -20 °C to +45 °C

Universal Payload Interface

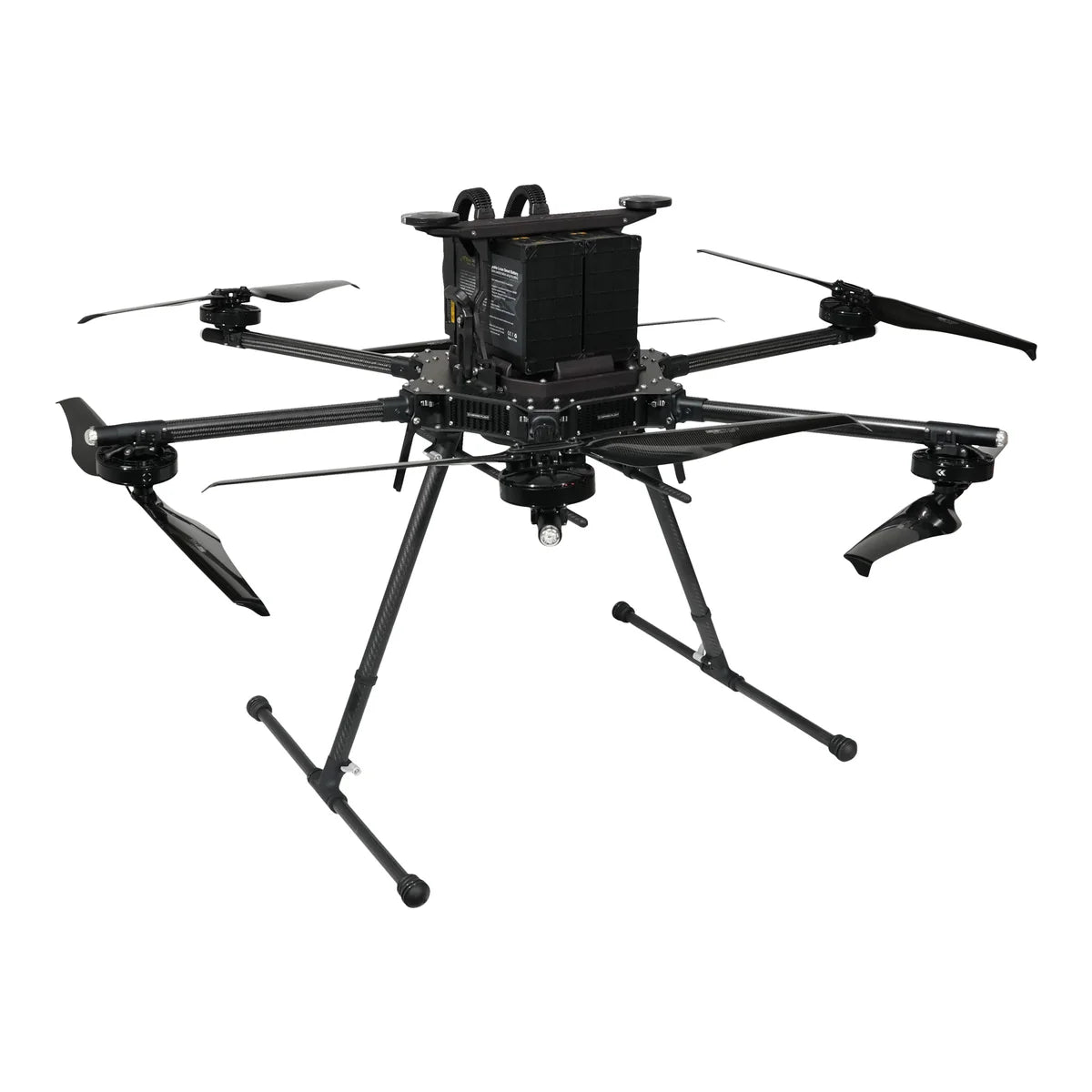

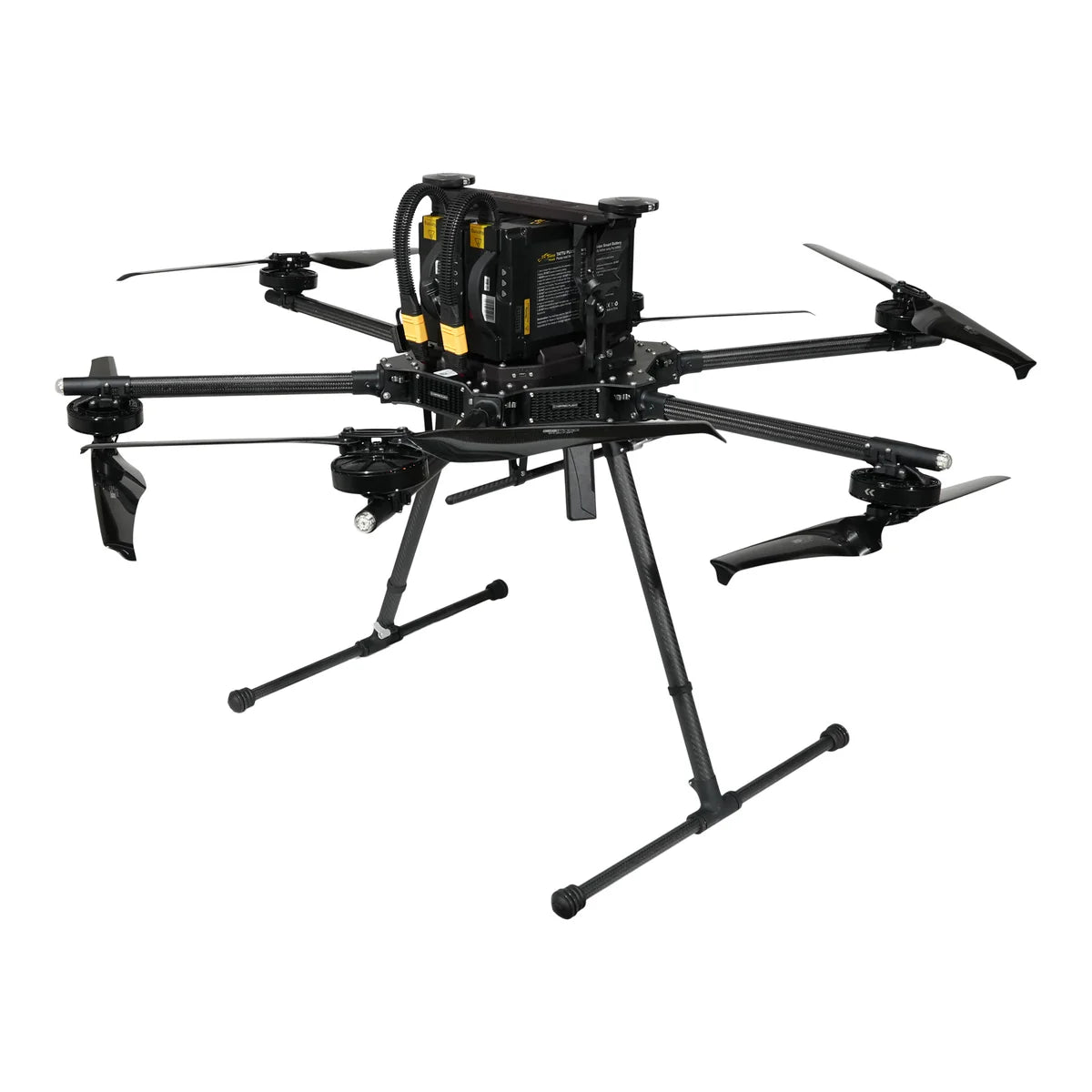

The IF1200A Heavy-Lift Hexacopter from Inspired Flight is a premium U.S.-made enterprise drone platform engineered for demanding missions. With Blue UAS/NDAA compliance, a 19.1 lb (≈ 8.7 kg) max payload, up to ~43 minutes of flight time, and a universal payload interface, this aircraft empowers inspection, LiDAR mapping, public-safety and industrial operations with unmatched flexibility and payload capacity.

Performance

Max Ascent Speed: 5 m/s (16.4 ft/s)
Max Descent Speed: 2.5 m/s (8.2 ft/s)
Max Air Speed: 25 m/s (56 mph)
Max Wind Resistance: 12 m/s (23 knots) sustained, 15 m/s (29 knot) gusts
Max Tilt Angle: 30°
Max Angular Velocity: Tilt: 300°/s, Yaw: 45°/s
Operating Temperature: -10°C to 40°C (14°F to 104°F)
Operating Humidity: 10% – 95%
Service Ceiling (with payload):3.9 km (12,800 ft) with 4 kg payload2.2 km (7,200 ft) with 8.7 kg payload

Physical Features

Diagonal Size (propeller center to center): 1,025 mm (40.4 in)
Unfolded Size (WxLxH): 165.5 × 154 × 76.5 cm (65.1 × 60.6 × 30.2 in)
Folded Size (WxLxH): 47.5 × 49.5 × 47 cm (18.7 × 19.5 × 18.5 in)
Empty Weight (without batteries): 7.8 kg (17.2 lbs)
Weight (with batteries): 16.3 kg (35.9 lbs)
Max Gross Takeoff Weight: 25.0 kg (55.0 lbs)
Max Payload Capacity: 8.7 kg (19.1 lbs)
Transport Case Size (WxLxH): 64.8 × 64.8 × 58.4 cm (25.5 × 25.5 × 23.0 in)
Transport Case Weight (with aircraft): 29.0 kg (64 lbs)

Flight Stack

Flight Controller: CubePilot Cube Blue H7 (Triple Redundant IMUs)
GNSS / Compass: Dual CubePilot Here3 M8P
Payload Power Rails: 5V, 12V/15V, 18V, 44.4V (12s battery voltage)
Payload Interface: IFT Universal Payload Interface V2.1
Operating Software: Copter by Ardupilot

Flight Modes

Position Hold: Holds altitude and position, manual roll and pitch control
Loiter: Maintains altitude and position, enables precision GPS-assisted movements
Auto: Executes pre-defined autonomous missions
RTL (Return to Launch): Automatically returns to the takeoff point and lands
Land: Automatically lands while maintaining horizontal position
Altitude Hold: Holds altitude only; failsafe mode if GPS signal is lost

What’s in the Box

IF1200A Heavy-Lift Hexacopter aircraft × 1
Remote ground-station/telemetry radio (depending on bundle)
Folding propellers & base bundle (no payload) configuration as standard
Transport case for the aircraft (size ~64.8 × 64.8 × 58.4 cm)
(Payload, sensors, battery packs, and other accessories may be sold separately — bundle options vary.)

Remote Robotic is a North American authorized dealer for Inspired Flight Inspired Flight IF1200A Heavy-lift.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

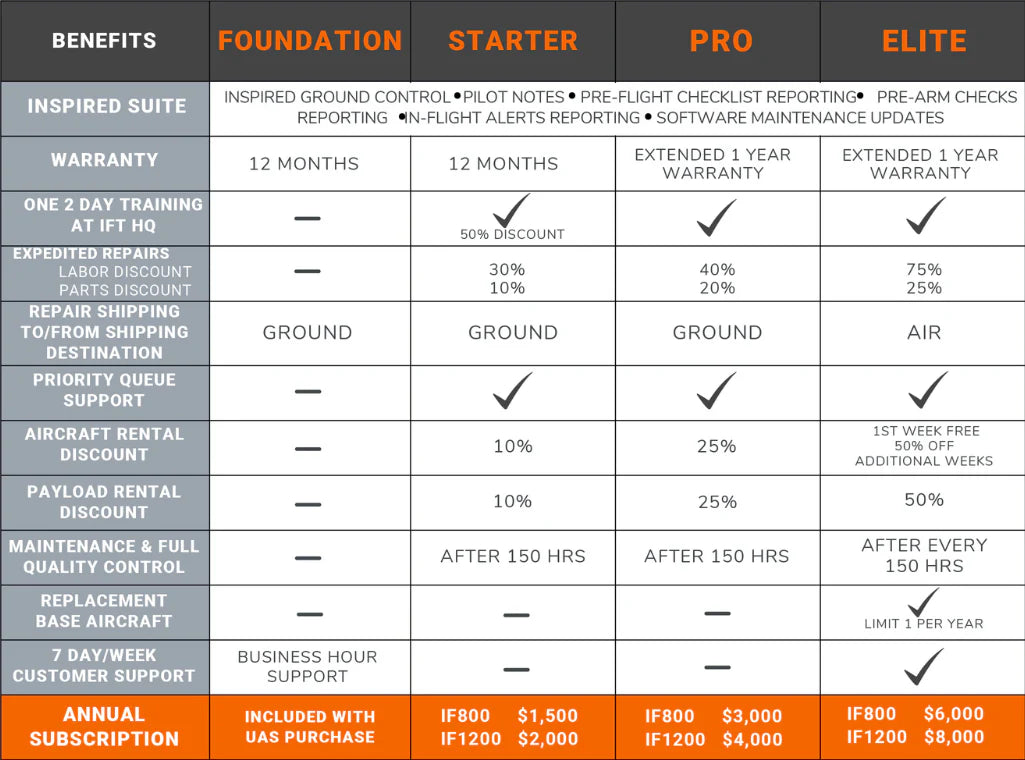

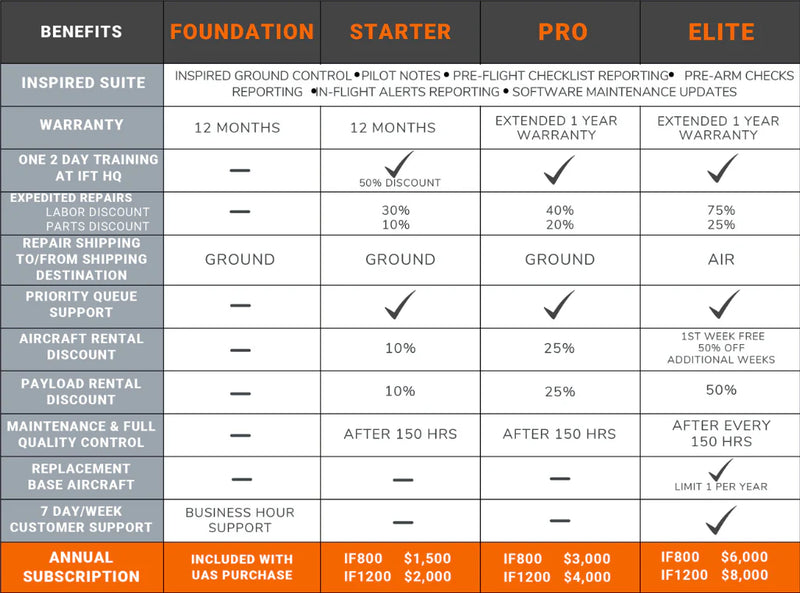

Learn more about Extended Care Program

IF1200 user manual

We offer training for all robotic solutions

Learn more

Inspired Flight IF1200A Heavy-lift FAQ

The IF1200A supports a max payload of ~19.1 lbs (≈8.7 kg) weight limits. With the correct certification/framework, it can handle higher payloads (up to ~28.7 lbs)

This heavy-lift drone is ideal for industrial inspection, LiDAR mapping, photogrammetry, public-safety response, heavy-payload sensor integration and enterprise operations where endurance, lift and reliability matter.

The platform supports wind resistance of ~12 m/s (with higher gust tolerance), operates in temperatures from approx. -20 °C to +45 °C, and can reach service ceilings around ~3.9 km when lightly loaded.
